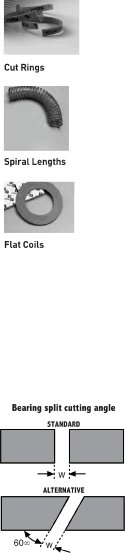

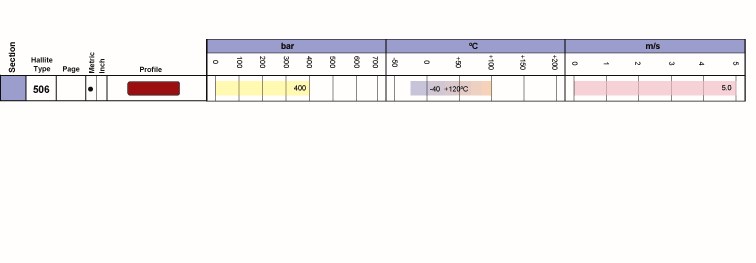

Cut Rings
Ready made bearing, cut to size and to customer
specifications, and ready for installation, Hallite 506 bearings
have become an industry standard favoured by designers and
specifiers alike. Generally produced for the medium to high
volume user.
Spiral lengths
Avaiable in a wide range of preformed diameters, spirals are
supplied in continuous lengths to suit a range of inside and
outside diameters. Ideal for lower volume users requiring
various diameters.
Flat coils
Packaged in a dispenser for ease of storage and handling, flat
coils are supplied in 10 metre lengths suitable for a wide
range of diameters and are ideal for those using or supplying
one off bearings for small volume requirements.

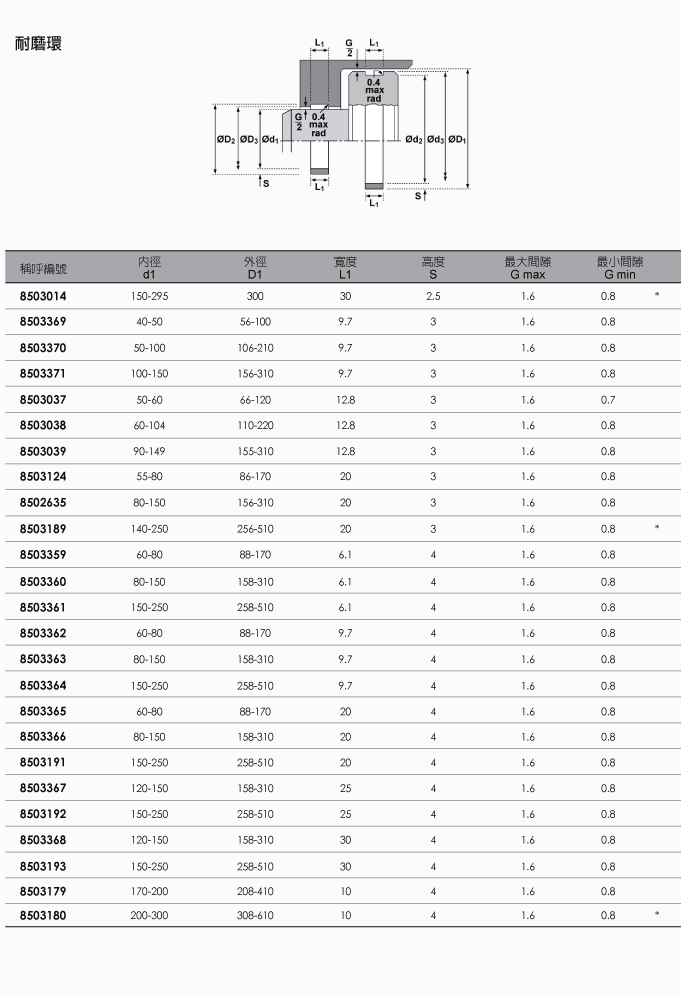

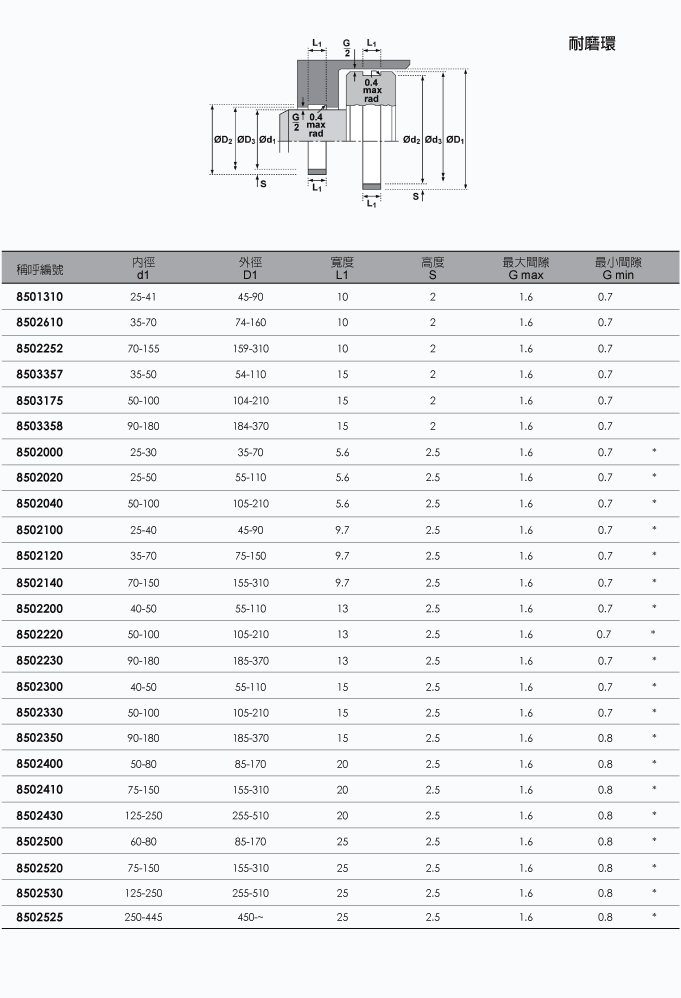

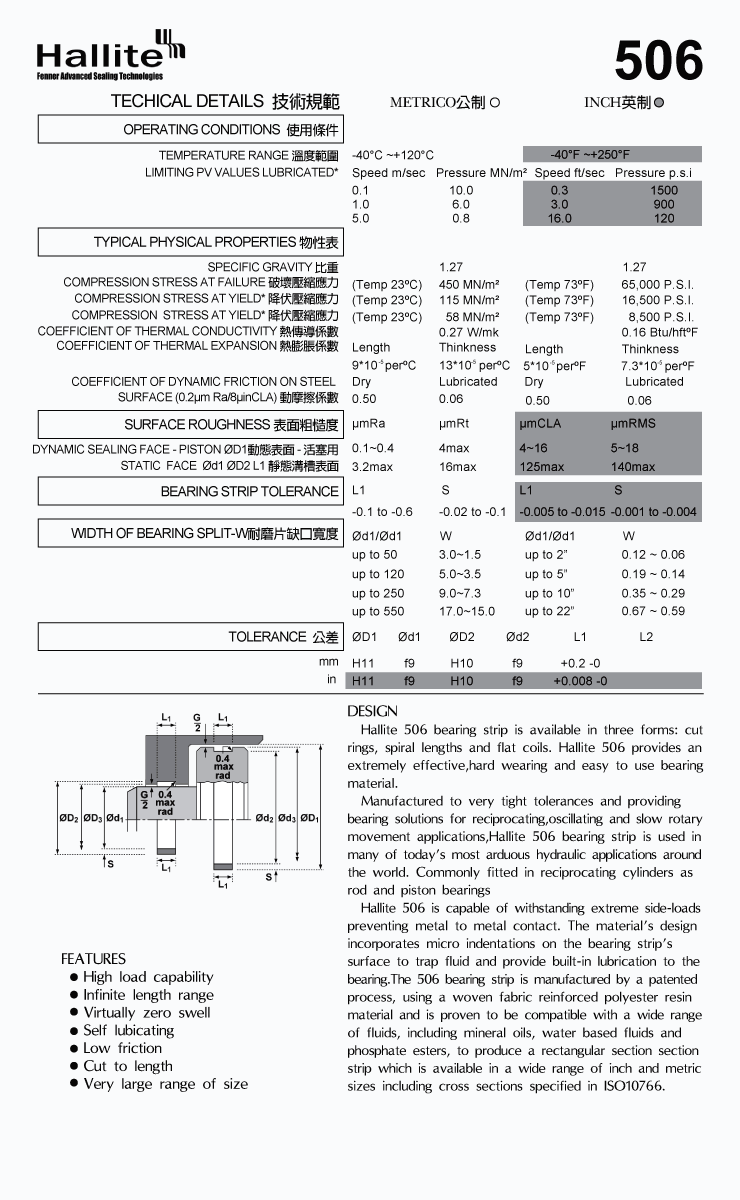

The ranges shown on the following pages are Hallite's most
popular sizes.The section ranges identify section and groove
width;from these nearly any diameter of cut ring or spiral
length can be manufactured.If you cannot find the size you
are looking for,please contact your local Hallite sales office
for additional size information.
All standard bearing strip is printed with a size reference and
includes distance marking every 100mm on metric size
sections and every six inches on inch size sections for
guidance only.

When ordering please clearly state whether cut rings, spiral
lengths or flat coils are required. For cut rings and spiral
lengths please state whether rod or piston application and
provide inside[Od]or outside[OD]diameters, groove width
[L1]and section [S]dimensions and where spiral lengths are
ordered also specify length reqired. For flat coils please
specify groove width [L1]and section [S]dimension.

Cutting bearing strip to size
1.Section the groove width [L1]and section [S]reqired.

2.In the case of a rod bearing, position the bearing strip
around the rod or in the case of the piston bearing, place
it in the piston groove and mark the point of overlap.
Determine the correct width of bearing split [W] for the
Od or OD being used, as indicate in the technical details,
and make a second mark.

3.Remove the strip and cut at the second marked position to
the desired angle using secateurs or other similar cutting tool.

It is recommended that the standard cutting angle is used
for the majority of application.
